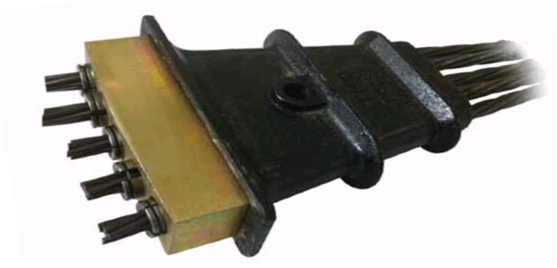

Flat Prestressed Anchorage PC Strand Prestressed Anchor for Bridge Construction
Description

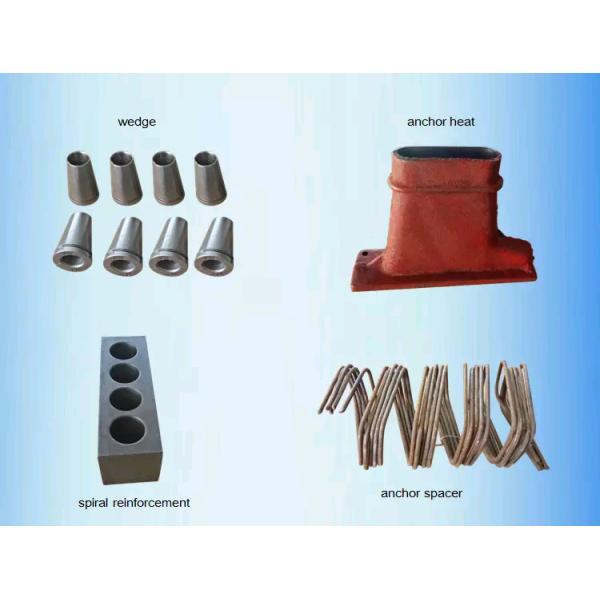

A set of prestressed round anchorage consists of anchor head, bearing plate, anchor wedge, spiral reinforcement . It is usually used with plastic or metal corrugated ducts, PC strands(PC wire bundle).The anchorage divides into two round anchorage and flat anchorage. Round anchorage is called YM series. Flat anchorage is called BM series.
Application
Prestressed anchors can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.
Our company can design and produce anchorages of any specifications in accordance with demands of customers.
Specification
| TYPE | BM13-2 | BM13-3 | BM13-4 | BM13-5 |
ANCHOR HEAD
(mm) | 80
48
50 | 110
45
45 | 140
45
45 | 170
45
45 |
ANCHOR PLATE
(mm) | 140
150
80 | 150
160
70 | 175
200
70 | 200
230
70 |
CORRUGATED DUCT
(mm) | 50
22 | 60
22 | 74
22 | 90
22 |
About Us
We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
FAQ
Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples for free, but the express cost would be on buyer’s account.
Q:How long is your delivery time?
A:Generally it will be 5 to 15 days according to quantity and type of the products.
Q:What is your terms of payment?
A:We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
